Overview:

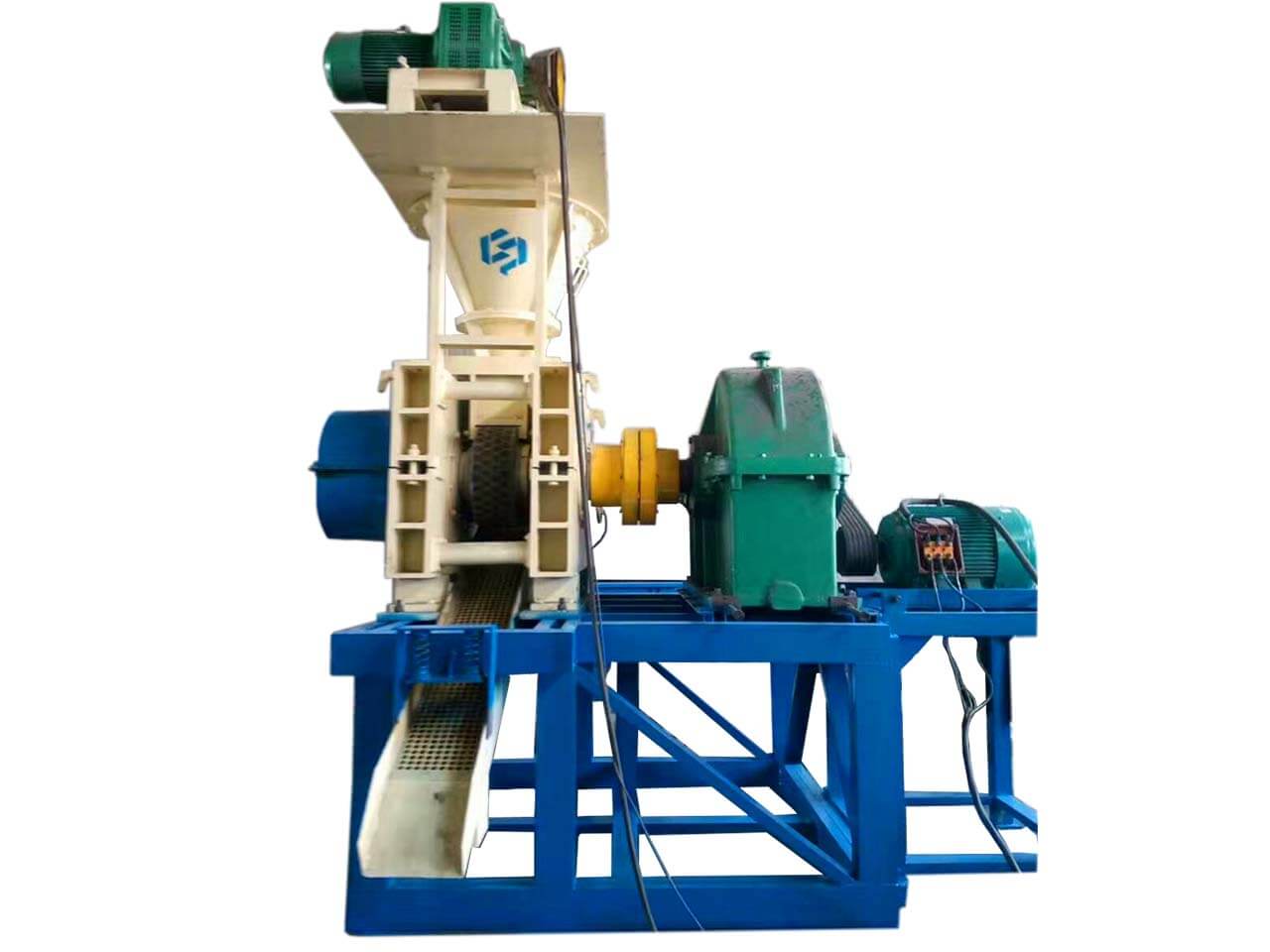

Aluminium dust roller press adopts high assembling technology, the compressing pressure reaches to 120-400 tons according to different models. It is mostly used in metallurgy field, which increase the utilization of aluminium dust and reduce the resources wastes. E.P Roller press has compact structure, reasonable processing assembling, high ratio of finished aluminium dust briquettes. Advantage:
1. Adopt the advanced transmission system, the roller press runs much more stably.
2. Installed with hydraulic system to increase the compressing pressure, it ensures the high pressure for the dust materials.
3. Adopt the force feeding system to ensure the feeding work evenly and continuously, furthermore, it increases the pre-pressing pressure.
4. Adopt the high quality alloy steel rollers to expand the service time.
5. Turnkey project of compacting aluminium dust project can be offered by E.P Machinery.
6. CNC center processes the rollers to ensure the accuracy. Technical datas:

Model	Capacity (T/H)	Transmission power (KW)	Force feeding device (KW)	Roller Size (MM)	Weight (T)	Dimension(M)
HSYQS-300	1	22+7.5+2.2	7.5	300*100	3.18	2.81* 1.95* 2.22
HSYQS-430	2-3	45+15+2.2	15	430*200	11	3.70*3.52*2.00
HSYQS-520	4-5	55+15+2.2	15	520*200	13	3.70*3.80*2.05
HSYQS-700	6-8	75+18.5+2.2	18.5	700*225	17	4.00*4.15*2.80
HSYQS-750	8-10	110+18.5+2.2	18.5	750*210	22	4.50*4.15*2.80



Associated equipment
Crusher---Proportion hopper--- conveyor
