Overview
Roller press, which also can be called compactor, is one kind of ideal equipment to convert coal, coke, peat, coal slurry into solid briquettes. The purpose is to reduce the dust, control the volume to a limited size and increase the utilization of resources and solve the transportation headache. Roller presses are widely used in mining field, metallurgy, refractory field, construction field and so on. In coal briquetting field, cold briquetting technology with adhesive materials are very popular.
Advantage
1. Compact structure low electricity consumption, high capacity.
2. Adopt the advanced transmission system, the roller press runs stably.
3. Installed with hydraulic system to increase the compressing pressure, it ensures the high pressure for the dust materials.
4. Adopt the high quality alloy steel rollers to expand the service time.
5. Turnkey project of coal powder briquetting plant can be offered by E.P Machinery.
6. CNC center processes the rollers to ensure the accuracy.
7. The mold can be customized according to clients’ needs.
After sales
1. One year’s guarantee completely
2. Accept testing machines before delivery
3. Online Technical supporting 24 hours
4.We will arrange our technical stuff to your factory for installation guide
Technical datas
Model |
Capacity (T/H) |
Transmission power(KW) |
Roller size(MM) |
Weight(T) |
Size(M) |
HSYQM-290 |
1-2 |
7.5 |
290*200 |
1 |
1.80*1.35*1.85 |
HSYQM-360 |
2-4 |
11 |
360*240 |
1.6 |
1.80*1.50*1.80 |
HSYQM-400 |
4-5 |
15 |
400*240 |
1.8 |
2.10*1.50*1.90 |
HSYQM-500 |
5-7 |
37 |
500*240 |
5.5 |
3.00*2.20*2.60 |
HSYQM-650 |
7-9 |
37/45 |
650*300 |
7.5 |
3.00*2.50*2.10 |
HSYQM-750 |
10-13 |
55/75 |
750*370 |
9.8 |
3.00*2.50*2.10 |
HSYQM-850 |
15-20 |
75/95 |
850*370 |
13 |
3.00*2.80*2.50 |
Production line designing

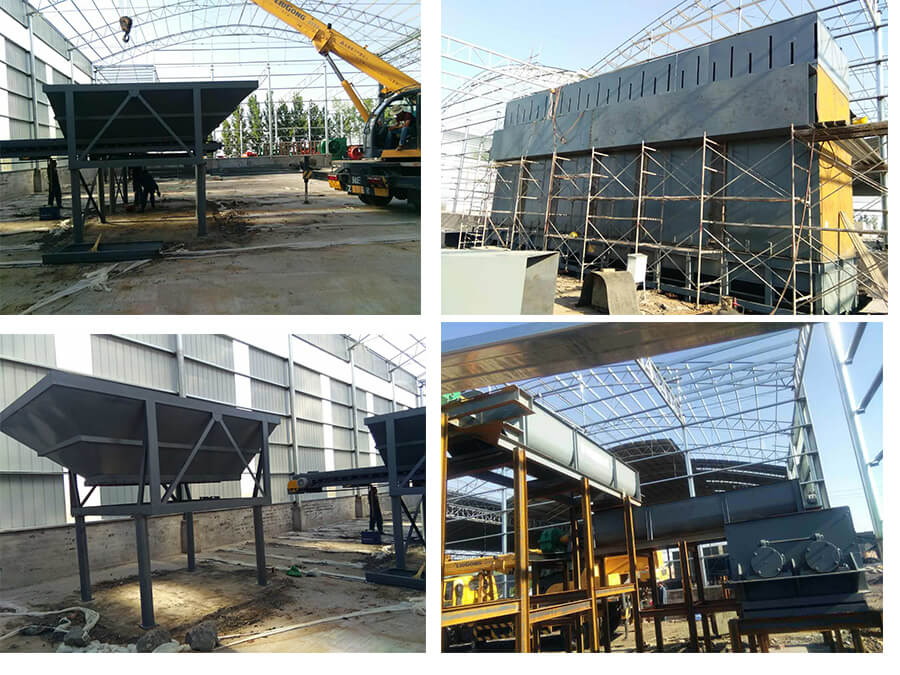

E.P Machinery supply the turnkey project service in coal briquetting production. Based on clients’ target capacity, we offer the whole proposal of briquette line designing, installation service, binder technology and aftersales service. (See the line designing.)

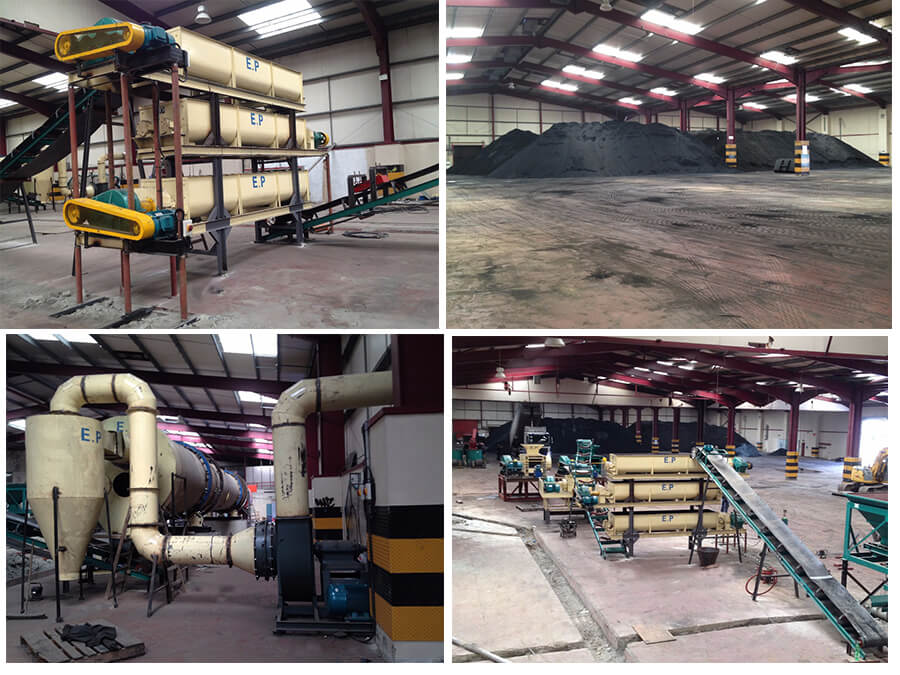

The whole line consists of hopper, crusher, dryer, mixer, prepress machine, roller press, coal briquette dryer, PLC Panel and several conveyors.
Up to now, we have many successful cases in coal briquetting field all over the world, Brazil, Ireland, Uzbekistan, Afghanistan, etc.
If you need our engineering team to give you proposal, welcome to contact us directly.
